High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254

Name: High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254
Brand: Shenzhen Realpark Co., Ltd.
SKU: RPH254-SERVO
Price: 491.00 USD
Availability: InStock

Markenbezeichnung:	Realpark
Modellnummer:	RPH254-SERVO
MOQ:	1 SET
Preis:	Welcome to contact us!
Lieferzeit:	1-2 Wochen
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE and ISO9001

Dokument:

Realpark RPH-254 DC Servo B...on.pdf

Part Name:

Vehicle Barrier System

Part Number:

RPH-254-SERVO

Motor Type:

DC 24V Servo Motor

Supply Voltage:

AC220V±10%, 50Hz/60Hz

Straight Arm Speed:

0~0.9s for 0~3Meters

Barrier Usage:

Outdoor or Indoor

Usage:

Parking lots

Arm Types:

Boom, Folding arm, Fencing arm

Package Size::

98*38*41cm

Carton Package weight:

36kgs

Verpackung Informationen:

98*38*41cm/36kgs/Set/Karton, 103*43*44cm/43kgs/Set/Holz

Versorgungsmaterial-Fähigkeit:

1000 Stück/Monat

Beschreibung des Produkts

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254

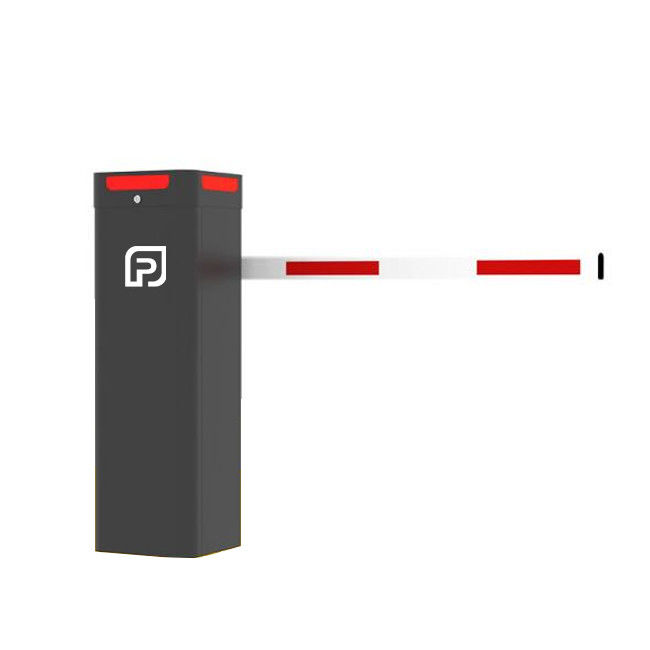

The RPH-254 is a high-speed, industrial-grade automatic barrier gate powered by a 24V DC servo motor, designed for smooth and efficient parking access control. It features anti-crush protection, LED indicators, and customizable communication options (RS232/485).

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 0

Key Features:
✅Ultra-fast operation with precision DC servo motor (200W)
✅Advanced anti-crush system (infrared + pressure wave + loop detection)
✅Industrial-grade aluminum alloy construction
✅Smart LED traffic indicators (red/green status lights)
✅1-5m adjustable elliptical barrier arm
✅Low-voltage 24V DC operation for energy efficiency
✅Supports RS232/485 communication for system integration
✅IP54 weatherproof rating for outdoor durability

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 1

Technical Specifications:
✅Power Supply: AC 220V ±10%, 50Hz (converts to 24V DC)
✅Motor Type: High-torque DC servo
✅Peak Current: 30A
✅Protection: Over-current/voltage/short-circuit
✅Control Interface: 4-digit LED + 4-button keypad
✅Operating Temperature: -30°C to +70°C

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 2

Why Choose RPH254?
✅Safety First - Triple-layer anti-crush protection prevents accidents
✅Lightning Fast - 3-5 second open/close cycle time
✅Built to Last - Military-grade materials withstand harsh conditions
✅Smart Control - Remote operation + system integration capabilities
✅Energy Efficient - 30% lower power consumption than AC motors

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 3

Applications:
✔ Smart parking systems
✔ Toll stations
✔ Gated communities
✔ Industrial facilities
✔ Airport parking

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 4

Customization Options:
Arm length customization (1-6m available)
Branding/OEM services
Special color requests
Custom communication protocols

Package Includes:
Barrier gate main unit
Control box
Installation manual
Basic remote control (optional)

High-Speed 24V DC Servo Barrier Gate with Anti-Crush Protection RPH254 5

FAQ

1. What makes the RPH254 different from standard barrier gates?
Our RPH254 features a high-performance DC servo motor that provides faster operation (3-5 second cycles) and smoother movement compared to traditional AC motor gates. The advanced anti-crush system with triple protection (infrared + pressure wave + loop detection) offers superior safety.

2. What power supply is required for installation?
The gate operates on standard AC 220V ±10%, 50Hz power, which is converted to 24V DC for the motor. This low-voltage operation makes it safer and more energy-efficient.

3. How long is the standard barrier arm? Can it be customized?
The standard elliptical arm comes in 1-5 meter lengths. We can customize lengths up to 6 meters for special applications through our OEM service.

4. What safety features does it include?
The RPH254 includes: Infrared beam detection,Pressure wave sensors,Loop detectors,Automatic emergency stop,Over-current/voltage protection

5. Can it operate in extreme weather conditions?
Yes, with an IP54 rating, aluminum alloy construction, and high-temperature baking paint (180-250°C), it withstands temperatures from -30°C to +70°C and resists corrosion.

6. What communication protocols are supported?
The gate supports: Standard RS232 interface,Optional RS485 communication,Dry contact signals,Wireless remote control

7. How does the LED indicator system work?
The smart LED lights show:
Solid red: Gate closed and secured
Solid green: Gate fully open
Flashing: Movement in progress

8. What maintenance does it require?
Minimal maintenance needed:Annual lubrication of moving parts,Periodic sensor alignment check,Visual inspection of wiring every 6 months

9. Can it integrate with existing parking systems?
Yes, through:Our provided SDK/API,Standard RS232/485 protocols,Dry contact interfaces,Custom integration services

For more technical details or customization inquiries, please contact our support team at realpark@realparkanpr.com. Our engineers are ready to help you design the perfect solution for your parking management needs.
